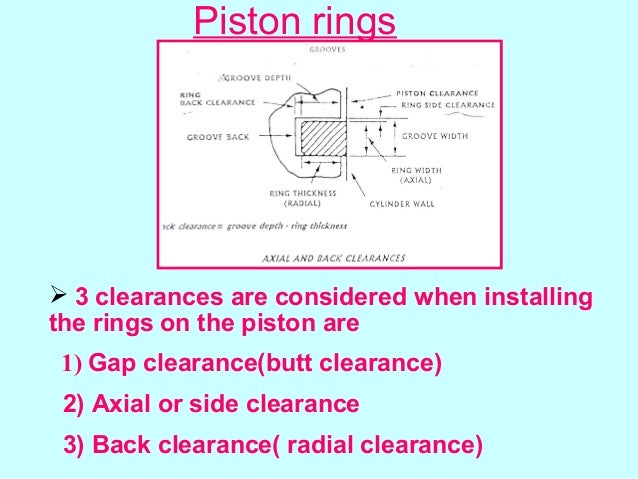

Axial Clearance Of Piston Ring. Ans -To allow Movement thermal expansionAxial clearance -to allow gas pressure to pass to and from the back of the Ringscircumferential clearancewhy circumference clearance at the ring joint is necessary to allow for thermal expansion but should not allow accessing prove past of gasBoth clearance vary with engine size and rating. The piston ring must be free to move in its groove therefore a clearance is required. To measure axial clearance fit the ring in. A piston ring collapses radially when a positive load differential oriented radially inwards is present between the outer and inner diameters of the ring.
The width thickness of the ring in the axial direction. The piston ring sits in a machined groove located such that the ring operates at an acceptable temperature. Depending on the application the side clearance is typically 001-003-inch. With todays thin rings some racers run side axial clearance as tight as 00004 - 00005-inch using gas ports to supplement ring pressure. Depending on the application the side clearance is typically. To measure axial clearance fit the ring in.
Likewise what is typical piston to.
Depending on the application the side clearance is typically. There are clearances axially and radially and the ring is usually free to rotate circumferentially around the groove. The piston ring sits in a machined groove located such that the ring operates at an acceptable temperature. The load distribution and orientation depends both on the radial pressure of the ring and its distribution and on the pressure from combustion that builds up in front of and behind the ring. Ring sides are the top and bottom surfaces of the piston ring. Distance between the inside diameter of the ring and the back of the ring groove when the ring is flush with the ring land.
